I2c device address: 0x7A, 0x7B
Lcd chip: Philips PCF 8548
Resolution: 102x65

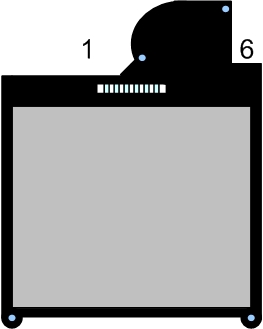

pin1 _Reset
pin2 Vlogic (+2.7V)
pin3 Sdata (i2c)
pin4 Sclk (i2c)
pin5 Gnd
pin6 Vlcd (+6,4V from internal dc/dc convertor)
