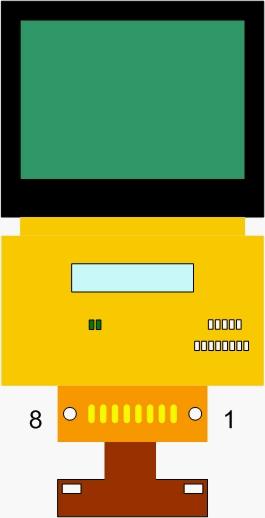

Lcd chip: HD66760
I2c address:0x72 / 0x74 / 0x70
Resolution: 101x80 RGB
pin1 Vlogic ( 2.8 - 3.2 V)
pin2 Gnd
pin3 _Reset ( active and for iic interface)
pin4 Sdata
pin5 Sclck
pin6 +Led1
pin7 Gnd (leds)
pin8 +Led2
