TSOP 1738 with RX pin of 8051

Go to page 1 [2] 3 4 5
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

Colin Mac

Thu Jul 10 2008, 06:35AM

Registered Member #4338

Joined: Wed Oct 10 2007, 05:46AM

Posts: 62
Thanked 1 time in 1 posts

Have you read this Paul
http://edsim51.com/8051Notes/8051/serial.html

say2paul

Thu Jul 10 2008, 06:41AM

Registered Member #8461

Joined: Tue Jun 17 2008, 10:56AM

Posts: 123
Thanked 6 times in 6 posts

It is really a nice theory to understand basic concepts of Serial communication, thanks Colin.

But I am looking for some real world example/circuit that can help me to achieve IR serial communication between PC-8051 or 8051-805.

Ajay

Thu Jul 10 2008, 07:56AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4035
Thanked 751 times in 710 posts

simply connect the output pin of TSOP with rx pin of 8051, there is nothing special to be done at the receiver side.

For transmitter i think discussion already going on in other thread.

PS: Please do not create multiple thread for similar problems

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

This post has been thanked 1 time

say2paul

say2paul

Thu Jul 10 2008, 08:32AM

Registered Member #8461

Joined: Tue Jun 17 2008, 10:56AM

Posts: 123
Thanked 6 times in 6 posts

Thanks for the support!

sashijoseph

Thu Jul 10 2008, 07:41PM

Registered Member #5870

Joined: Mon Feb 04 2008, 06:26PM

Posts: 648
Thanked 137 times in 130 posts

Hi Paul...
Would be better if you try and implement the receiver in software( what is called bit banging) rather than use the 8051's hardware uart.Ultimately for SIR communication with the 8051 you'll have to use a software approach.The 8051's hardware uart won't work with the SIR protocol.
You can refer to this page for a s/w uart implementation... http://www.8051projects.net/serial-communication/software-uart-8051.php

Another point of concern is,using a tsop would call for using a 36 or 38k modulated signal. Simply transmitting some data from the mobile and expecting the tsop to decode it and send it to the 8051 won't work.The sir frame has to 'carried' by a 38kHz carrier.
I had explained about this in one of your other threads(and that's why we always request to keep a single thread) but it seems you've overlooked it.

Let there be music........

say2paul

Thu Jul 10 2008, 10:02PM

Registered Member #8461

Joined: Tue Jun 17 2008, 10:56AM

Posts: 123
Thanked 6 times in 6 posts

Thanks Sashi,

The link you mentioned above is good but not for me, as I don't understand assembly language. I think you are right that I need to implement this in software instead of 8051 hardware UART.

I tried decreasing the baud rate to 2400 (TH1=0xf4) and send the data from mobile phone using IrSIR at "2400 bps, 8 data bits and 1 stop bit". When I send data from mobile phone to the TSOP 1738 directly connected to RX pin of 8051, I received garbage characters (monitoring on hyper terminal connected to 8051).

FYI: I am not using any capacitor/resistance as discussed in the datasheet of TSOP 1738, rather I directly connected GND to ground, Vs to 5V and data pin to the RX pin of 8051.

P.S. you are right I should stick to 1 thread. But if you noticed for past few days, I am sticking to this thread. So I would request you to ignore other threads and please provide me support for IR in this thread.

sashijoseph

Fri Jul 11 2008, 12:49AM

Registered Member #5870

Joined: Mon Feb 04 2008, 06:26PM

Posts: 648
Thanked 137 times in 130 posts

Hi Paul...
The Rx pin of the 8051 is meant for uart data.Sending SIR data to the Rx pin will not work as both the protocols are different(even if you use a low baudrate,stop and data bits similar to a uart).
What you have to do at the micro is first forget about the Rx pin,receive the tsop data at regular io pin (you must poll the pin at regular intervals according to the timing of the irsir protocol and store the polled bits in an array or buffer).
Then you must parse this buffer stripping off any start/stop bits and arriving at the actual data.

Like I already pointed out,the irsir signal coming from your mobile is, in all probability, not modulated at 36/38kHz.Thus the tsop will not be able to demodulate and send the actual frame to the micro's pin.All you may receive could be junk.

So you'll have to send a modulated signal from your mobile for the tsop to work.

Let there be music........

This post has been thanked 1 time

say2paul

say2paul

Fri Jul 11 2008, 01:13AM

Registered Member #8461

Joined: Tue Jun 17 2008, 10:56AM

Posts: 123
Thanked 6 times in 6 posts

Thanks Sashi, but the link you pointed is in Assembly language. Also the pin mentioned in the link are the same RX/TX pin of 8051. Should I change those from pin 3.0/3.1 to some other pins?

Arun Kumar V

Fri Jul 11 2008, 02:36AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 521
Thanked 218 times in 185 posts

Hi say2paul,

i think its your lucky day !

from yesterday night i have been working on your project (micro 2 micro Ir link) and finally got success,

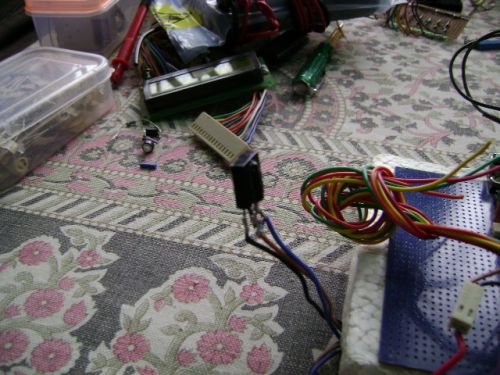

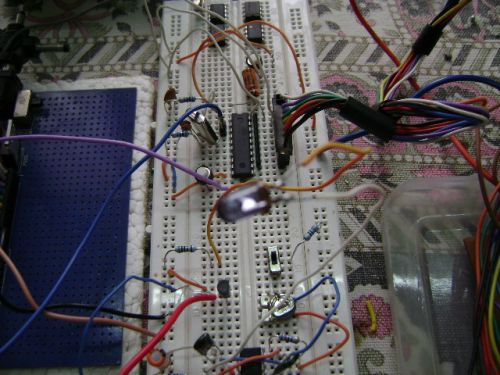

here are my project pics:

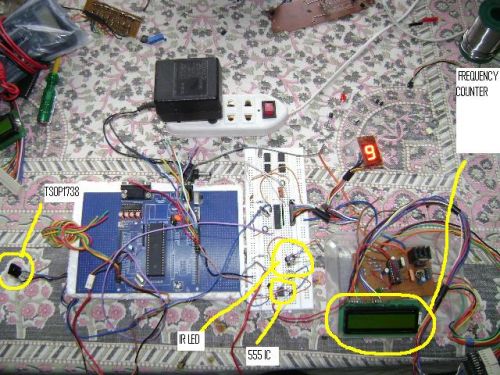

project description:

every time a button is pressed on the Tx micro, numbers from 0 - 9 are transmitted serial thru UART at 1200bps baudrate and Rx micro decodes the ascii numbers and rips off the ascii component and displays the numbers on 7 seg led display.

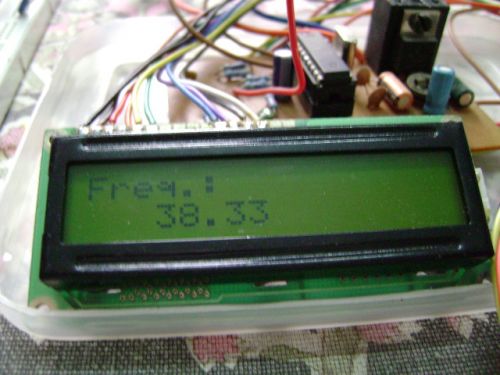

getting a stable 38Khz carrier from 555 was tough and my method of modulating is different from what is mentioned in the forum and works perfectly

here's the video too :

http://www.youtube.com/watch?v=0sAAqnhv7p4

Arun

[ Edited Fri Jul 11 2008, 02:39AM ]

IR communication TSOP1738 IR communication 38khz IR communication 8051 IR communication

This post has been thanked 1 time

say2paul

say2paul

Fri Jul 11 2008, 02:59AM

Registered Member #8461

Joined: Tue Jun 17 2008, 10:56AM

Posts: 123
Thanked 6 times in 6 posts

WOWWWW!!

You rock buddy...

Great, this will surely help me a lot. I watched the video as well, can you please share the circuit diagram and the C code so that I can immediately start working on it.

Thanks so much!
