need help to identify manufacture..

Go to page [1] 2
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

aik457

Thu Sep 04 2008, 08:28AM

Registered Member #10366

Joined: Thu Sep 04 2008, 08:15AM

Posts: 9
Thanked 0 times in 0 posts

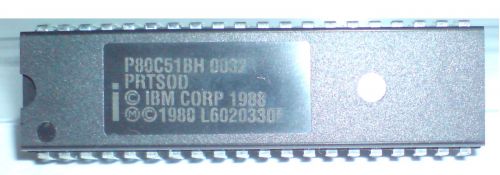

i recently bought a micro controller model p80c51bh and i have to find the data sheet for it. and i manage to get 2, 1 is from Intel and another is from Philips. but i have a question on which is the actual manufacture, because there is an " i " logo there which i believe is stand for Intel but there is a line where IBM is also printed and i can't find any data related this model and IBM on GOOGLE so i need help from you guys here to help me to identify so that i can get the correct data sheet for my micro controller.

i have attach the picture of the micro controller.

thank you very much.

Anup Teke

Thu Sep 04 2008, 08:38AM

Registered Member #10156

Joined: Wed Aug 27 2008, 05:50AM

Posts: 19
Thanked 1 time in 1 posts

http://pdf1.alldatasheet.com/datasheet-pdf/view/15908/PHILIPS/P80C51.html
this is the data sheet of the same

aik457

Thu Sep 04 2008, 08:42AM

Registered Member #10366

Joined: Thu Sep 04 2008, 08:15AM

Posts: 9
Thanked 0 times in 0 posts

ok. thx for the help.

do you mind teach me how to correctly identify the manufacture?? or tell me that what the the letter on the micro controller stand for?

i can;t open the link... can you send me another? thank you.

[ Edited Thu Sep 04 2008, 08:44AM ]

Anup Teke

Thu Sep 04 2008, 08:49AM

Registered Member #10156

Joined: Wed Aug 27 2008, 05:50AM

Posts: 19
Thanked 1 time in 1 posts

http://www.alldatasheet.com/datasheet-pdf/pdf/15908/PHILIPS/P80C51.html TRY THIS

This post has been thanked 1 time

aik457

Anup Teke

Thu Sep 04 2008, 08:53AM

Registered Member #10156

Joined: Wed Aug 27 2008, 05:50AM

Posts: 19
Thanked 1 time in 1 posts

Identification of IC manufacturer by logo
http://www.advanced-tech.com/ic_logos/ic_logos.htm

Integrated Circuit Identification
http://www.engineering.uiowa.edu/~eshop/mflogo.dir/ic-id.html

aik457

Thu Sep 04 2008, 08:56AM

Registered Member #10366

Joined: Thu Sep 04 2008, 08:15AM

Posts: 9
Thanked 0 times in 0 posts

yay... it works.. thx alot for helping...

pdi33

Thu Sep 04 2008, 09:35AM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 770
Thanked 185 times in 180 posts

hi aik,
looks like u have acquired a romless 8051 which means the u need to interface a external RAM to it in order to execute any code as the IC itself does not have any program memory. It would have been a lot better if u had purchased a uC with the 89XX tag as these have a flash memory which can be easily erased/reprogrammed, ideal for development stage of a uC based product.

805X --- romless
875x --- EPROM based program memory
895X --- flash based program memory

P.S. there are some preprogrammed bytes inside the uC called signature bytes. if u can read them through a programmer, u can pinpoint the manufacturer as each one have their own distinct signature code for each product.

[ Edited Thu Sep 04 2008, 09:38AM ]

* inspired to develop,developing to inspire *

aik457

Thu Sep 04 2008, 12:46PM

Registered Member #10366

Joined: Thu Sep 04 2008, 08:15AM

Posts: 9
Thanked 0 times in 0 posts

omg.. this is really a bad news to me...
looks like i have to buy my self a 895X ... this 1 belong to atmel right?
and i have a very simple question to ask also... the 895X which u say can be erased mean that i can flash the micro controller for unlimited times?

aik457

Thu Sep 04 2008, 01:03PM

Registered Member #10366

Joined: Thu Sep 04 2008, 08:15AM

Posts: 9
Thanked 0 times in 0 posts

http://www.cpu-world.com/CPUs/8051/Intel-P80C51BH.html
but why here stated that it have 1?

pdi33

Thu Sep 04 2008, 08:49PM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 770
Thanked 185 times in 180 posts

well, i think it is an OTP IC i.e. one time programmable. this is similar to an EPROM memory the only difference being that the written code cannot be erased/reprogrammed (no window provided to erase the data by exposing it to UV light).
I would recommend u go for the phillips 89c5XRX series or the atmel 89SXX series as they are ISP programmable . ( the programmer ckt is easy and can be built by u with a few components).
