hello sir,
i am vinay B tech EEE. Sir can u please say me how to connest the device like tube,bulb and other device in the appliance section of the cirucit.

vinay

This post has been thanked 1 time

BLUETOOTH

Ajay

Wed Jul 11 2007, 12:49PM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4042
Thanked 753 times in 712 posts

Vinay,
if you want to 220V appliances, then you can make use of relays. To connect relays there are two ways, either you can use opto couplers or relay drivers like ULN2003A for switching of relays. the connector where the appliances are shown will directly go to the opto coupler i/p or the driver inputs. This way you can switch real 220V appliances.

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

Ritesh

Sat Jul 14 2007, 12:28AM

Registered Member #65

Joined: Tue Aug 29 2006, 03:10AM

Posts: 54
Thanked 10 times in 10 posts

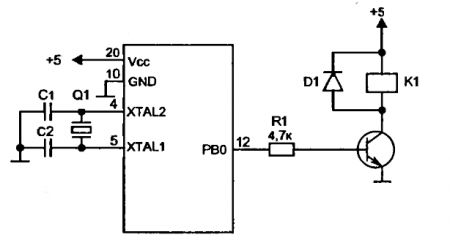

To drive relay you need more than 20mA – the current can one pin drive. This is why you cannot connect relay directly to microcontrollers pin. To drive relay you need to connect simple amplifier made of one transistor.

One important part of this circuit is the diode, which protects circuit from induction caused when switching relay.

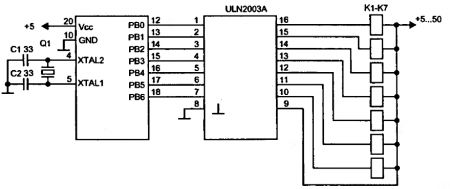

This circuit is more general as instead relay you can connect any other load like lamps, DC motors if you need to control more than one relay, you might consider using ICs like ULN2003 or ULN2803. These IC’s have Darlington transistors inside and can drive up to 500mA each

To switch on a relay in this case you need simply write “1” to port pin. And current doesn’t exceed the allowed limit of microcontroller.

This post has been thanked 1 time

vinay

SGH

Sat Sep 08 2007, 10:04PM

Registered Member #672

Joined: Tue Mar 06 2007, 10:47PM

Posts: 38
Thanked 3 times in 3 posts

I'm using AT89S51 + ULN2803 (operated at 12 V) to turn on relay. At first start of program, I wrote mov P0,#0 to turn off all relay as when first power up, P0 always in logic 1 which will turn on the relay.

I only need to turn on the relay 3 - 4 times a day in a very short duration (10 second).

Will the way I initiate the state of P0 cause any problem in the program flow ?. Any solution so I don't have to change the state of port P0 when first power up ?.

Thanks,
SGH

۞ TPS ۞

Sun Sep 09 2007, 01:46AM

Registered Member #2712

Joined: Tue Jul 31 2007, 12:06AM

Posts: 470
Thanked 67 times in 57 posts

make sure that power for AT89s51 (+5V) and ULN2803 (+12 if you are using 12V relay) not get mixed !

Online Component Shoppe
http://www.onlinetps.com/
Components at cheap rates in India

Ajay

Sun Sep 09 2007, 09:42AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4042
Thanked 753 times in 712 posts

Hi SGH, i think you need to explain the basic operation of your circuit.. and the reason why you are using reply..
also.. if you have any problem with ULN2803 then use optocoupler.. that is also one of the best option..
and on startup you can make the circuit such that.. o/p is off when i/p is On.

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

vinay

Sun Sep 09 2007, 11:20AM

Registered Member #1796

Joined: Tue Jun 26 2007, 08:06AM

Posts: 9
Thanked 1 time in 1 posts

hello sir
i am jagdish. i am new to this using of C language for micro controller cding. I have read the code of C language for this project. But there are a few commands which i was not able to under stand.How can i get to know what they actually mean. For ex:bit_8 code mesg1[]={0x00,0x00,0x00,0x0F,0x08,0x0B,0x08,0x0B};
and there are few other commands and syntaxes. How can i learn to use these differnt new set of C language commands.

vinay

Ajay

Sun Sep 09 2007, 01:03PM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4042
Thanked 753 times in 712 posts

Hi vinay..
here is a good point that you can note down in yor notepad or something.. Whenever you download or get a code written in C or any other language..
always take a look at the files which are included.. i.e. under #include directive.. that tells you what all files are to be read along with the current file.

So in my code.. i have also included some of the header files.. like you are saying what is bit_8 i think this answer is there in the file HAreg.h which has all the datatypes defined.
bit_8 is an 8-bit data type and is a typedef of unsigned char. There is nothing new in the code.. just instead of writing a big "unsigned char" i defined it as bit_8 so easy for me to write in programs. Hope you are getting my point.
There is nothing new.. its just the same C language.. which you used to study.. all you need is to pay little more attention and you must take a very close look at all the files

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

SGH

Sun Sep 09 2007, 06:32PM

Registered Member #672

Joined: Tue Mar 06 2007, 10:47PM

Posts: 38
Thanked 3 times in 3 posts

I forgot to mentioned that my circuit also has DS1307 + LCD. The circuit works as follows : when the time setting as same as time shown by DS1307, mcu will send signal to ULN2803 to turn on relay. Relay then will turn on water pump for 10 second. In a day, there will be 3 - 4 times the pump will turned on.

At the beginning of my code, I wrote mov P0,#0 to turn off all relay as when first power up, P0 always in logic 1 which will turn on the relay.

I know I can reverse the connection on the relay contact output but the relay will be in on state almost all the time and only turn off for 3 times x 10 second.

Will the way I initiate the state of P0 cause any problem in the program flow ?. Any solution so I don't have to change the state of port P0 when first power up ?.

Thanks,
SGH

Ajay

Mon Sep 10 2007, 03:26AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4042
Thanked 753 times in 712 posts

use external pullups and P0 will act like normal I/o ports.. no problem with that.. use 2.2K pullup.
And reverse the connection of relay such that 1 is off and 0 is on. that will solve your problem

--
Please try to post in your thread only
