How to measure current? (ADC08034 interface to the AT89C52)

Go to page 1 [2] 3
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

Help

Wed Jun 20 2007, 07:58AM

Registered Member #880

Joined: Sat Mar 31 2007, 09:40PM

Posts: 81
Thanked 2 times in 2 posts

Ya, thank you very much. You let me understand alot of thing.
I also no plan to use ADC08034. Because i can't get this IC in my country and i think ADC0834 also mostly the same.
I already order LT1787HV and LTC1286 will coming soon.
Ya, may i know ADC can measure Negetive voltage and if negetive supply then how can i measure the current?

Thank You.

Ajay

Wed Jun 20 2007, 10:26AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 4042
Thanked 753 times in 712 posts

well.. according the rule of electronics.. if the voltage is -ve then.. the current must be flowing in opposite direction.. so current measurement must be the same way.. just we get -ve value.. coz of opposite direction. maybe not sure..

i think there must be some provision to support -ve voltage in the IC.

off-topic: where are you from by the way?

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

christie

Sun Aug 24 2008, 10:40PM

Registered Member #10084

Joined: Sun Aug 24 2008, 10:37PM

Posts: 9
Thanked 0 times in 0 posts

hi...I also doing the project about measure the current by using 8051 microcontroller but I have no ideas for design the circuit.
Can u attach your circuit diagram for reference, please?
Thanks

Arun Kumar V

Mon Aug 25 2008, 07:22AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 522
Thanked 219 times in 186 posts

Hello Christie,

welcome to our forum !

measuring Current using 8051 is simple, it is done same way as measuring voltage.

first we need to convert the current flowing in the circuit to voltage, for that we use either : a sense (shunt) resistor,a non contact torridal transformer or a Current transformer (often called CT).

for simple current measurements we can use Sense resistor of any value from 0.1 ohm to 1 ohm. now the sense resi has to be placed in the target circuit to read the current flowing, this resi can be placed in the negative path ( i,e between the load and ground) this is called as "low side sensing" and when we place the sense resi in positive path ( i,e between positive supply and load) this is called as "high side sensing"

usually, low side sensing is easy and requires low components, so we'll stick to this type of current sensing for time being, the following figure shows this setup :

now lets recollect our famous Ohm's law, V= RI , for eg : in the above circuit the sense resistor 's value is 1 ohm and when 1 ampere of current is flowing thru the circuit , then 1 Volt will be developed across the sense resistor.

V = R x I

I = V / R

here I = 1(volt) / 1(ohm)
i,e = 1 (ampere)

so we read this voltage developed across the sense resistor using a ADC and micro, this voltage signal can be fed to a Op-amp and then fed to a ADC to remove noise. the power dissipated in the Sense resistor needs to be calculated; its given by I2R ( here it is 1 watt, so to be on safe side we can use 5 watt wire wound 1 ohm resistor)

for larger currents the sense resistor method does'nt work( becoz of large amounts of heat generated in resistor) , thats where we use CT or Torroid CT.

Arun

measuring current using microcontrollers current measurement ADC0804 8051 ADC based current measurement

This post has been thanked 3 times

nischay kumar , christie , kurrodu

pdi33

Mon Aug 25 2008, 08:08AM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 770
Thanked 185 times in 180 posts

In industries, for high AC current measurement,C.T.s are used whereas for the high DC currents a DC shunt resistor is used. the shunt resistance is designed such that the output voltage from the shunt is always 75mV/150mV for full scale operating current.e.g. if u buy a 50A DC shunt, then the potential difference across the shunt when 50A is passed through it is 75/150mV . this DC voltage can then be given to a suitable op-amp amplifier to amplify the signal to the required level and given to the ADC as explained by arun.

* inspired to develop,developing to inspire *

This post has been thanked 1 time

kurrodu

christie

Tue Aug 26 2008, 11:13PM

Registered Member #10084

Joined: Sun Aug 24 2008, 10:37PM

Posts: 9
Thanked 0 times in 0 posts

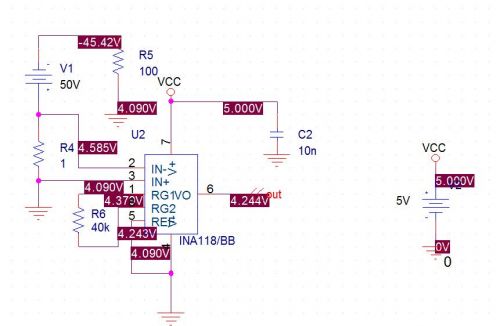

i have try to draw low side current sensing circuit but i cannot get the output in AC form.
and i not sure that my output is correct or not.
thanks

Arun Kumar V

Wed Aug 27 2008, 12:38AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 522
Thanked 219 times in 186 posts

Where is the load ? and what is the value of Sense resistor ?

Arun

christie

Wed Aug 27 2008, 02:13AM

Registered Member #10084

Joined: Sun Aug 24 2008, 10:37PM

Posts: 9
Thanked 0 times in 0 posts

the load is R5 then the sense resistor is R4 n value is 1 ohm

Arun Kumar V

Wed Aug 27 2008, 07:10AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 522
Thanked 219 times in 186 posts

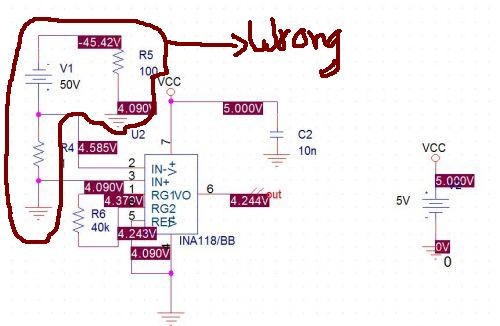

what do you call this connection ? ( i have marked ) high side or low side sensing ?

pl.refer to the diagram i posted earlier and connect accordingly.

Arun

This post has been thanked 2 times

christie , kurrodu

nischay kumar

Wed Aug 27 2008, 07:25AM

Registered Member #8311

Joined: Sat Jun 07 2008, 11:09AM

Posts: 31
Thanked 3 times in 3 posts

@christie

maybe you haven't noticed the "thanks" button in the posts, its there for some purpose, so use it for the people who are spending time to help you, our Moderators especially Mr.Arun has explained the concept in great detail and also Pdi33, so you owe them Big time.

( i have seen in this forum, folks from Malaysia are seldom Thankful and very active in posting their problems)
