pliz help me! thanks


Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

arejar21

Tue Oct 07 2008, 07:38AM

Registered Member #10935

Joined: Wed Sep 24 2008, 10:05PM

Posts: 5
Thanked 0 times in 0 posts

hi all!

can sum1 give me schematic and coding for this project...i attached the block diagram for this project.

can sum1 helps me how to design the right circuit by using Proteus 6 .
One of the circuit composed of force sensor, transmitter, led, switch to turn on the transmitter, op-amp(LM358), and the other one consists of receiver, pic (16LF84A) , mux, switch, led and two vibration motor, ..For force sensor circuit i have to get the output first before go to the next stage (design 2nd circuit) but i just don't know how to attain the right output with this force sensor.
Before this i tried to design the circuit and simulated but failed to get the output. I also faced a problem when using the software ... i could not find the transmitter part and think that part is not available in that software.

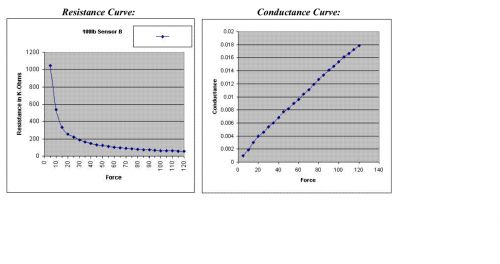

this is the sensor output range that it should be.

shyam

Tue Oct 07 2008, 04:09PM

Registered Member #2984

Joined: Mon Aug 06 2007, 11:33AM

Posts: 723
Thanked 107 times in 103 posts

hey the diagram is not clear can u rar it and then upload the link??

lProgress is not made by early risers or hard workers, but by LAZY people, trying to find easier ways to do the same........

arejar21

Wed Oct 08 2008, 09:55AM

Registered Member #10935

Joined: Wed Sep 24 2008, 10:05PM

Posts: 5
Thanked 0 times in 0 posts

sorry..this the link for block diagram.

http://rapidshare.com/files/152085452/block_diagram.rar

Ajay

Fri Oct 10 2008, 01:10PM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3757
Thanked 697 times in 656 posts

what have you done till now?

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

arejar21

Sun Oct 12 2008, 03:57AM

Registered Member #10935

Joined: Wed Sep 24 2008, 10:05PM

Posts: 5
Thanked 0 times in 0 posts

so far i already designed for force sensor circuit..but the output voltage is too small and negative. Furthermore, i'm facing a problem to understand and use the software (beginner).
