simple but getting worse for me(roborace project)


Moderators: Ajay Bhargav, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph, ExperimenterUK, DavesGarage

Author

Post

robotics_mait

Sun Feb 07 2010, 08:30AM

Registered Member #19013

Joined: Wed Jun 03 2009, 07:17AM

Posts: 3
Thanked 0 times in 0 posts

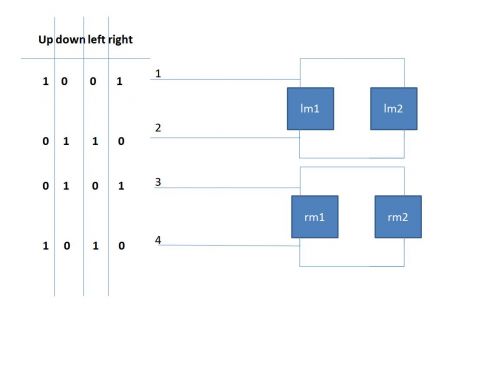

hi guyz ..i am trying to make a 4-wheeled robot for the roborace project..i have a pcb from mitbots which has 4 switches(for forward,backward,left,right directions) and i have completed my mechanical portion for the robot...there are a total of 6 pins-- 2 for battery terminals and 4 for output from switches named pin1,pin2,pin3,pin4...i am posting the circuit... i am using li-ion batteries for running dc 100rpm motors..the problem is that when i press a button ,say forward , i get output as 1 1 1 1 instead of getting 1 0 0 1 ...what shall i do??is there any other circuit that is better than it???what is the problem going with it....plz post immediately

Ajay Bhargav

Sun Feb 07 2010, 10:01AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 7484
Thanked 1324 times in 1248 posts

i think you should check your connections. coz by just having that block diagram i cannot tell you anything. you should have posted the circuit how switches are connected.

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

robotics_mait

Sun Feb 07 2010, 10:01PM

Registered Member #19013

Joined: Wed Jun 03 2009, 07:17AM

Posts: 3
Thanked 0 times in 0 posts

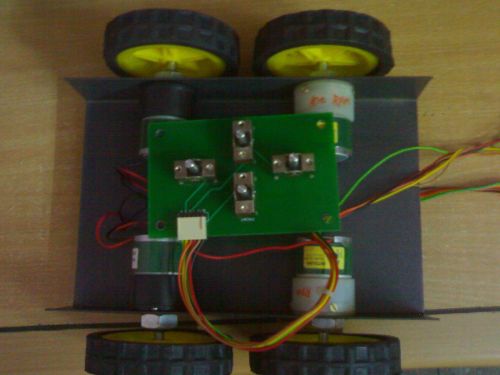

i have bought the remote from mitbots (an organization) and it has 4 switches(that move in one direction only)...i am posting the photo of that also...the remote pcb has 4 switches --for up,down,left,right respectively ...there is a connector connecting this remote pcb..this connector has a total of 6 pins of which 2 are of power supply and 4 are for the outputs named--pin1,pin2,pin3,pin4...when an up button is pressed then 1 0 0 1 logic is the output from these pins(pin1--1 , pin2 -- 0, pin3--0, pin4--1)...the problem i am facing is stated in my previous post....i have used only remote pcb and battery and robot motors directly connected to the output pins from remote pcb...i hope you understand....

ExperimenterUK

Mon Feb 08 2010, 11:32AM

Registered Member #9602

Joined: Tue Aug 05 2008, 04:15PM

Posts: 1243
Thanked 198 times in 197 posts

Do you have a link to the item you bought or a data sheet ?.
I tried to look it up at "mitbots" but you can't see anything until you sign up.

I tried signing up but my form was not accepted

For an organization promoting "robotics for the masses"
they seem rather secretive.

Ajay Bhargav

Tue Feb 09 2010, 11:25AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 7484
Thanked 1324 times in 1248 posts

adding to that.. its better not to buy such secretive stuff

when you can make it yourself.

and in picture, i can see more wires creating the actual glue logic to run the motors. and remote is having that answers maybe.
