Help GLCD port from 8051

Go to page 1 2 [3] 4 5
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

shyam

Sun Jan 06 2008, 10:33AM

Registered Member #2984

Joined: Mon Aug 06 2007, 11:33AM

Posts: 665
Thanked 93 times in 89 posts

@mhel

but the original author uses 128x128 lcd, mine is 240x128

well if u talking abt the following function u r right

CODE:

static uint32_t current_addr_pointer (void)

/**************************************************************/

{

  return 1024 * selected_page + yStart*Nmax + xStart/8;

}

ok see...
using 5x8 pixel... =>
8 pixel y direction

128 *8 = 1024

=>one page = 1024

now if i want to select page 2 coordinates 30,40
so the function will return 1024 *2 + 30*5 + 40*8

i guess that is what the function is doing...

bottom line...
wether it be 240x128 or 128x128...
for complete page scan we need to scan 128
so doesnt matter..
it wud be 1024 in both the cases...
not tested on board just a logical suggestion

lProgress is not made by early risers or hard workers, but by LAZY people, trying to find easier ways to do the same........

mhel

Sun Jan 06 2008, 11:53AM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

shyam:
I'll try to clean it first then I'll upload it.

thanks.

mhel

Sun Jan 06 2008, 02:20PM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

Hi Shyam,

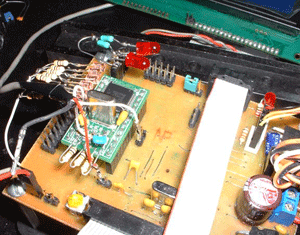

this is the simple setup I have, to test the lcd.
pinouts are in the config.h. this is taken from WinArm samples, I use CodeBlocks as
as my editor, I like it, not keil but better than programmer's notepad.

winarm_lcdt.zip

mhel

Wed Jan 09 2008, 03:11AM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

bottom line...
wether it be 240x128 or 128x128...
for complete page scan we need to scan 128
so doesnt matter..
it wud be 1024 in both the cases...
not tested on board just a logical suggestion

I have verified the above to be correct, I have changed it to 3840, and changed it back to 1024 and the behaviour is the same. I assumed, since I was using 240x128 and fontwidth of 8 that I needed 3840 bytes according to a document I read. Although I think my math skills is skewed

I have 30columns by 16rows, does this mean I only need 480bytes of ram per page? or this calculation only applicable to Text mode?

BTW, I attempted to to draw bitmaps, but it only draws part of the image, please tell me what I missed thanks. The structure for IMG is defined with height, width, and the actual data.

CODE:

uint8_t draw_img(uint8_t x1, uint8_t y1, IMG * img)

{

  uint8_t x, y;

  uint8_t *iptr=img->data;

//  set_display(F5x8, NORMAL);

  gotoxy(x1,y1);

  x = x1;

  y = y1;

  while (y < y1+img->height)

    {

      while (x < x1+img->width/8)

        {

          framebuffer[current_addr_pointer()]=*iptr;

          iptr++;

          x+=1;

        }

      x=x1;

      y+=1;

      if (Nmax != img->width/8)//Nmax = 30

        {

          gotoxy(x,y);

        }

    }

  refresh_LCD(0);

  return x1 + img->width + 1;

}

Shyam: I appreciate your time on doing the scroll thing, I'll wait for it 'cause I doubt I'd be able to hack it. Thanks.

mhel

Wed Jan 16 2008, 10:23AM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

I got the image drawing working, I can't believe it's this simple I had to hit my head a couple of times

CODE:

uint8_t draw_img(uint8_t x1, uint8_t y1, IMG * img)

{

  gotoxy(x1,y1);

  wrbm(img->width, img->height, img->data);

  refresh_LCD(0);

  return xStart + 1;//returns next x position

}

I guess if you look at the code for a long time it will just pop up

shyam

Wed Jan 16 2008, 11:33AM

Registered Member #2984

Joined: Mon Aug 06 2007, 11:33AM

Posts: 665
Thanked 93 times in 89 posts

congratulations.. mhel!!!!...
enjoy your work!!

lProgress is not made by early risers or hard workers, but by LAZY people, trying to find easier ways to do the same........

mhel

Thu Jan 17 2008, 01:11PM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

thnx shyam,

one question, in the lcd code, what do you think would be the posible uses of the function copy_page(), right now I have it commented out since i limit my framebuffer pages to just 1.

mhel

Mon Feb 04 2008, 08:45AM

Registered Member #5217

Joined: Sat Dec 22 2007, 03:02PM

Posts: 36
Thanked 9 times in 9 posts

I managed to add blinking cursor to lcd driver:

CODE:

static void set_cursor(uint8_t row, uint8_t col, uint8_t cursor)

{

  uint16_t addr;

  addr =  GHOME + (row/8)  + (col*30);

  lcd_setaddr(0x24, addr);

  if (cursor)

    lcd_sendcmd(0xf8 | ((7-row%8)));

  else

    lcd_sendcmd(0xf0 | ((7-row%8)));

}

void set_curpos(void)

{

  uint8_t i, c;

  c = yStart+8;

  cursortoggle ^= 1;

  for (i=0; i<8;i++){

//    set_cursor(xStart, yStart+i, cursortoggle); /* set vertical cursor position */

set_cursor(xStart+i, c , cursortoggle); /* set horizontal cursor position */

  }

}

the code above is independent of the framebuffer, It is called after the lcd is refreshed. Actually, it is called from a timer interrupt every 500ms,
I place a flag in refresh_LCD() and is checked in the interrupt if the cursor is to be displayed. xStart and yStart is global and primarily used in the framebuffer. I can't remember why I had the cursortoggle global too tho. the code is basically turning on/off 8pixels following the xStart & yStart.

Ajay

Mon Feb 04 2008, 09:39AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3375
Thanked 616 times in 583 posts

great going mhel (whats your real name

)
adding blinking cursor to LCD will keep controller busy, is it? coz gfx LCD has to be updated after every half sec or something.. what you say?

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

shyam

Mon Feb 04 2008, 11:33AM

Registered Member #2984

Joined: Mon Aug 06 2007, 11:33AM

Posts: 665
Thanked 93 times in 89 posts

he is a wise guy..
using interrupts..
there are lots of interrupt sources in arm that you can use mostly IRQ not much burden on the controller...!! ARM is supposed to handle this business @ low power

lProgress is not made by early risers or hard workers, but by LAZY people, trying to find easier ways to do the same........
