how to dispaly the a/d value from PIC16F877 using visual basic in digital value

Go to page 1 [2] 3 4
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

norms

Sat Feb 16 2008, 10:14AM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

GioppY wrote ...

Do you mean something like this:

can you teach mo how? like to ask for your code on that... please

GioppY

Sat Feb 16 2008, 11:27AM

Registered Member #6071

Joined: Fri Feb 15 2008, 03:10PM

Posts: 22
Thanked 7 times in 4 posts

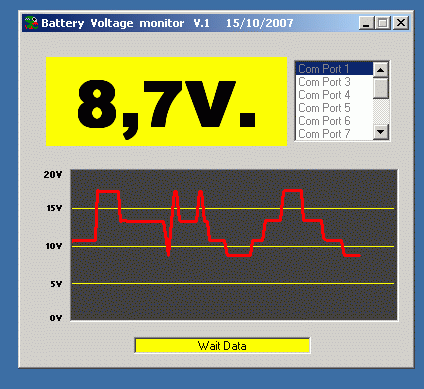

Hi.
I have attached the vb6 source code and the exe.
It communicate by one of the available com port on your pc @ 2400 baud,n,8,1
It wait for a string in the following format xx,xCR (CR means carriage return) where xx,x is a numeric value in the 00,0 to 19,9 range (please note the comma).
When receive the string it display the value (the string as received) and plot a graphic representation; after 128 samples the plot is erased and restarted.
It wait for a string every second; i do not know if it can handle higher sample rate.
Obviously you have to modify the code for your requirement.
Regards
Gianni
P.S.
220v ??? I hope that you use a transformer to REDUCE and ISOLATE the mains from the pic and from the pc

batt_mon.zip

norms

Sat Feb 16 2008, 11:39AM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

thanks... yup i am using a transformer to step down the voltage then have some declarations equating 220=2.5 volts... thank you very much...

norms

Sat Feb 16 2008, 10:25PM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

GioppY wrote ...

batt_mon.zip

Gioppy can you check my c program for microcontroller if its correct? thanks

GioppY

Sun Feb 17 2008, 07:56AM

Registered Member #6071

Joined: Fri Feb 15 2008, 03:10PM

Posts: 22
Thanked 7 times in 4 posts

Sorry! I do not know C language. I use picbasic.
Regards

sashijoseph

Sun Feb 17 2008, 10:10AM

Registered Member #5870

Joined: Mon Feb 04 2008, 06:26PM

Posts: 554
Thanked 124 times in 117 posts

@Norms
Can you explain your project in some detail(mainly the algo)....
As for the C program some things look suspect.....

CODE:

norms = (( 2.5 *1023)/5);

Now why would you do that?Why not simply 'norms=511',which is the value you get from that computation.
And what is 'volts_out'?Are you reading in some value from the serial port?

CODE:

else if(volts_out==get_adc)

You haven't initialised get_adc,so you're in effect comparing volts_out to garbage.

Let there be music........

norms

Mon Feb 18 2008, 01:14AM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

volts_out is the value read from the output of the load... its not from the serial port... hehehe, i just want to show the computation so any man know how i get the 511 value... so is the program ok?

sashijoseph

Mon Feb 18 2008, 09:24AM

Registered Member #5870

Joined: Mon Feb 04 2008, 06:26PM

Posts: 554
Thanked 124 times in 117 posts

Except for get_adc value rest seems ok.
btw what is the get_adc for?

Let there be music........

norms

Tue Feb 19 2008, 02:24AM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

its for getting the reading from the load... like the decimal value and as well as the digital value...

norms

Thu Feb 21 2008, 10:56PM

Registered Member #6079

Joined: Sat Feb 16 2008, 12:34AM

Posts: 28
Thanked 0 times in 0 posts

heres my vb code: please and kindly check it. thanks

CODE:

Private Sub CmdExit_Click()

    If MSComm1.PortOpen = True Then

    MSComm1.PortOpen = False

    End If

        End

End Sub

Private Sub Form_Load()

    MSComm1.InputLen = 0

    MSComm1.CommPort = 1

    MSComm1.Settings = "2400,N,8,1"

End Sub

Private Sub Timer1_Timer()

    Dim BytesToRead As Integer

    Dim norms As Variant

    MSComm1.PortOpen = True

    BytesToRead = 1

    Do

        DoEvents

        Loop Until MSComm1.InBufferCount = BytesToRead

        norms = MSComm1.Input

        Text1.Text = (((Asc(norms) * 0.01) * 230) / 2.5) & " Volts AC"

        MSComm1.PortOpen = False

End Sub
