clock speed

Go to page [1] 2
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

amiicool

Tue Jul 15 2008, 01:42PM

Registered Member #9062

Joined: Tue Jul 15 2008, 12:27PM

Posts: 10
Thanked 0 times in 0 posts

Hello
i am new to avr microcontrollers. i compiled the following code using CVAVR by its make command. i also set clock speed to 4 MHz using the configure dialogue box. It runs fine when i Simulate it on Proteus, but practically after burning, controller blinks the LEDs slower than actually they should.

/*****************************************************
Project : LED Flasher
Chip type : ATmega32
Clock frequency : 4 MHz
*****************************************************/

#include<mega32.h>
#include<delay.h>
#define xtal 4000000

int i;

void main (void)
{
PORTB=0xFF;
DDRB = 0xFF;

while(1)
{

for(i = 1; i <= 128; i = i*2)
{
PORTB = ~i;
delay_ms(100);
}

for(i = 128; i > 1; i = i/2)
{
PORTB = ~i;
delay_ms(100);
}

}

}
------------------------------------------------------------------------------
i am using AVR ISP programmer with parallel interface,

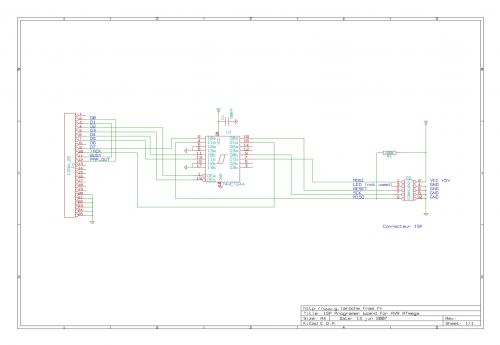

i have attached the schematic of the AVR ISP programmer
Software for burning is Pony Prog.

VizeGuY

Ajay

Wed Jul 16 2008, 08:22AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3753
Thanked 696 times in 655 posts

well there is lot of difference in practical and simulation, i think you know it now

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

amiicool

Thu Jul 17 2008, 09:20AM

Registered Member #9062

Joined: Tue Jul 15 2008, 12:27PM

Posts: 10
Thanked 0 times in 0 posts

Thank u Sir but wats the remedy,
Please help

VizeGuY

pdi33

Thu Jul 17 2008, 11:12AM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 655
Thanked 144 times in 140 posts

well ami,
to match the simulation in real time, u have to keep the CPU load of the simulation lower than 100%. reducing ur uC frequency to a lower value definetely reduces the CPU load. I think it als depends upon ur system configuration because ur software ran pretty smoothly in my system ( maybe because it is an AMD athlon 4400+ 64 bit CPU+ 2B RAM

).
So do not spend time trying to speed up the simulatin. just co-ordinate ur output with the time base shown on the bottom of the simulation screen

and anyways, it will run smoothly in real time on hardware so why worry?

* inspired to develop,developing to inspire *

MATHIVANAN

Thu Jul 17 2008, 11:54PM

Registered Member #2569

Joined: Wed Jul 25 2007, 05:21AM

Posts: 57
Thanked 4 times in 4 posts

do you check the fuse bit settings. other wise it will use internal oscillator and it works very slow

I respect others the same way i expect from others.

amiicool

Fri Jul 18 2008, 03:23AM

Registered Member #9062

Joined: Tue Jul 15 2008, 12:27PM

Posts: 10
Thanked 0 times in 0 posts

Simulation runs fine, CPU load varies between 50% - 60%.
The problem i have is that practically after burning the AVR, The LEDs Blink slower than 0.1ms, which i have programmed it for.
i used a 4MHz Crystal.

I want to Know if have missed any register defination in my programming which selects the external clock for AVR that is 4MHz Crystal. Or is there a problem while burning the AVR, because i simply compiled the program with CodeVisionAVR and burned the Hex file to the AVR using PonyProg.

VizeGuY

Arun Kumar V

Fri Jul 18 2008, 06:50AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 452
Thanked 190 times in 160 posts

Hello Amiicool,

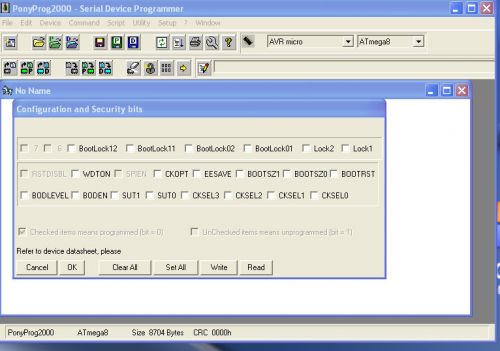

i hope you have set the clock fuse to external Hi-freq Crystal while burning the hex in pony prog.

Arun

This post has been thanked 1 time

amiicool

pdi33

Fri Jul 18 2008, 08:00AM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 655
Thanked 144 times in 140 posts

here are the clock fuse bits to be set for different oscillator options
(taken from the ATMEGA datasheet)

take care that checking the box implies zero and leaving it blank implies 1 in ponyprog fuse settings.
default valueof CLKSEL fuses when shipped is 0001 i.e. 1MHZ internal oscillator.
to change it to external 4mhz oscillator change it to settings highlighted in red.

* inspired to develop,developing to inspire *

amiicool

Mon Jul 21 2008, 12:02PM

Registered Member #9062

Joined: Tue Jul 15 2008, 12:27PM

Posts: 10
Thanked 0 times in 0 posts

Thanks Arun

and Thanks Pdi33

I did dot set the fuse bits.

would please tell me in detail on how to set the fuze bits for 4Mhz external Xtal on ponyProg.

VizeGuY

pdi33

Mon Jul 21 2008, 08:29PM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 655
Thanked 144 times in 140 posts

hi ami,
try the following steps for changing the fuse bits:
1. connect the uC in ISP mode.
2. open ponyprog and click on the 'securityand configuration bit' in the 'command' menu.
3. the dialogue box (as shown in previous post of arun ) will appear. here press the read button. this will read the security /configurastion bits of ur uC and update the various boxes (checked/unchecked). If ur uC is fresh(i.e. if u are changing this for the first time), then the default value of the uC is 1MHZ internal oscillator. i.e. the CLKSEL fuses will be in this order:
clksel3 ------> 0 ----- > checked
clksel2 ------> 0 ----- > checked
clksel1 ------> 0 -----> checked
clksel0 ------> 1 ----- > unchecked
SUT1.1 --------> 1 ----- > unchecked
SUT1.0 -------> 0 ------> checked

now, for external crystal of 4MHz, u need to change the bits to the following values:
clksel3...0 -----> 1111
SUT1.1-1.0 -----> 1111
CKOPT ------> 1

so, uncheck all these boxes to bring them to 1 and press write button.

that is all.
good luck.
