Pic16f628 hyperterminal connection

Go to page 1 [2] 3 4
Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

Ajay

Tue Mar 18 2008, 12:35PM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3753
Thanked 696 times in 655 posts

your connections are not seem to be fine..

plz post your circuit cannot understand what are you saying..
and yes you need max232 for connecting PIC to PC.

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

turker1

Tue Mar 18 2008, 12:50PM

Registered Member #6471

Joined: Wed Mar 05 2008, 11:52PM

Posts: 69
Thanked 0 times in 0 posts

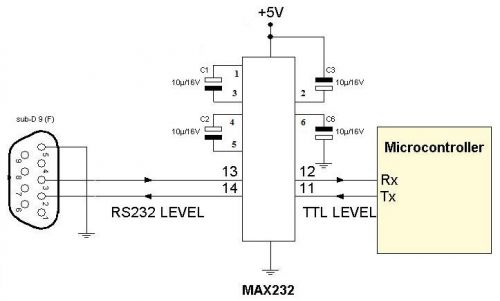

circuit in attach.
i did as circuit. but with my code (i gave it) it doesnt work.
sometimes some character comes. but characters > $%&
i want to send only "1".

electronic lover

Ajay

Tue Mar 18 2008, 01:08PM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3753
Thanked 696 times in 655 posts

what is crystal frequency you are using? and baud?

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

turker1

Tue Mar 18 2008, 01:11PM

Registered Member #6471

Joined: Wed Mar 05 2008, 11:52PM

Posts: 69
Thanked 0 times in 0 posts

i selected intrc. 4 mhz and my c program too. and i tried 9600. but nothing happened. then i select 2400 only hyperterminal. some different characters came.
i used for loop. so it must come every loop. but that characters comes sometimes.and isnt "1"

[ Edited Tue Mar 18 2008, 01:12PM ]

electronic lover

shyam

Tue Mar 18 2008, 10:08PM

Registered Member #2984

Joined: Mon Aug 06 2007, 11:33AM

Posts: 723
Thanked 107 times in 103 posts

r u using CCS PCM compiler?? the cod eseems that way...
while burning to the chip did u check the correct configuration... ??
i mean oscillator type and WD..

your problem can be due to enabled watch dog or wrong choice of oscillator...

lProgress is not made by early risers or hard workers, but by LAZY people, trying to find easier ways to do the same........

turker1

Wed Mar 19 2008, 06:06AM

Registered Member #6471

Joined: Wed Mar 05 2008, 11:52PM

Posts: 69
Thanked 0 times in 0 posts

i selected intrc clkout. wihch setting i must enable?
wdt,mclr, etc.

electronic lover

turker1

Wed Mar 19 2008, 07:05AM

Registered Member #6471

Joined: Wed Mar 05 2008, 11:52PM

Posts: 69
Thanked 0 times in 0 posts

and i connected lcd.but in lcd screen (2x16) there are 16 small box. the program and connection true.my program:

CODE:

#if defined(__PCM__)

#include <16F628.h>

#use delay(clock=4000000)

#define use_portb_lcd TRUE //lcd bilgisi için port b'yi kullanıyoruz

#include <LCD.C>

int tamsayi=1; // tamsayi adında tamsayı tipinde bir değişken tanımlıyoruz ve değerini 1 olarak başlangıçta veriyoruz.

void main()

{

   lcd_init(); //lcd ekranımızı kuruyoruz

   printf(lcd_putc,”Cevizimiz:\n%d”,tamsayi); //Ekrana “Cevizimiz:” yazar ve alt satıra giderek sonuc değişkenini yazar.

   bas:

   goto bas;

}
