Help to program a voltmeter.


Moderators: Ajay, Junied , abbas1707, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph

Author

Post

firefly88

Mon Jun 16 2008, 02:49AM

Registered Member #8432

Joined: Mon Jun 16 2008, 02:17AM

Posts: 5
Thanked 0 times in 0 posts

I am making a voltmeter using Keil uvision2. I have no idea how to start, anyone can help me ....

The microcontroller receive digital data from ADC and display it on the lcd panal. The diagram is in the attach.

untitled.zip Many thanks to anyone who can help!!!

Arun Kumar V

Mon Jun 16 2008, 05:47AM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 452
Thanked 190 times in 160 posts

Hello firefly,

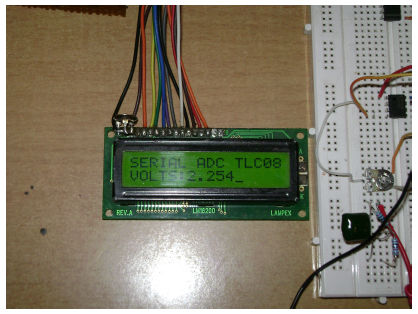

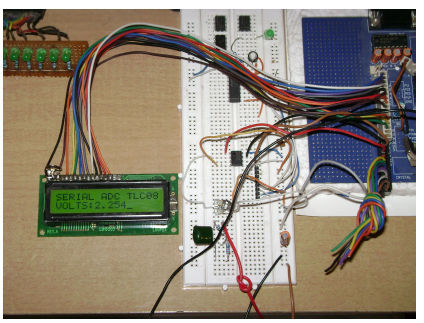

i have done the same project, but in assembly language, normal input is 0 - 5 V, in my other version you can measure 0 - 15 V with 8 bit resolution.

let me know how far you have come in your project, and i'll help

Arun

Ajay

Mon Jun 16 2008, 07:58AM

Rickey's World Admin

Registered Member #1

Joined: Fri Feb 24 2006, 04:56AM

Posts: 3753
Thanked 696 times in 655 posts

It looks nice arun

why don't you add it to download?

www.rickeyworld.info
If you feel satisfied with the user's forum reply please click on the thank button.

Obey forum rules!
Respect others!

firefly88

Mon Jun 16 2008, 05:59PM

Registered Member #8432

Joined: Mon Jun 16 2008, 02:17AM

Posts: 5
Thanked 0 times in 0 posts

Hi arun i have done the project in c programming and now i would like to use assembly languange but with little knowledge about it. As assembly languange are more easy to understand, can youu post your assembly languange code as i would like to analyze how it works. Thank you!!!

Arun Kumar V

Mon Jun 16 2008, 07:22PM

Registered Member #426

Joined: Sun Jan 28 2007, 11:50PM

Posts: 452
Thanked 190 times in 160 posts

Hello Ajay,

yes i can post my project in download section, i have a collection of my projects which i' ll post when the particular topic/concept arises.

Firefly88 : if you have already done this project in C then where is the problem in doing it in Assembly, the Algorithm remains the same, isn't it ?

in your first post this is what you said :

start the code in assembly and i' ll help step by step here in the forum , keep in mind that the Serial ADCs are different from each other, read the datasheet before using them in your project

all the best then !

Arun

firefly88

Wed Jun 25 2008, 07:44PM

Registered Member #8432

Joined: Mon Jun 16 2008, 02:17AM

Posts: 5
Thanked 0 times in 0 posts

Hi! Arun,
I have a problem, my voltmeter display for the second decimal place is not stable. It keep changing. Do you have any idea why the display is not stable or is there any solution for it. Thank you.

pdi33

Wed Jun 25 2008, 07:56PM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 655
Thanked 144 times in 140 posts

Hi firefly,

Check the voltage input to the ADC.maybe the source to the ADC itself has ripples or is unregulated. If that is the case do the following:
1.check if ur power supply is stable. Use adequate capacitor for filtering the output
voltage.
2.If u are using a op-amp for processing the voltage then connect a 0.1uF cap between the inverting terminal to the output terminal of the op-amp(i.e. between pin2 and pin6 in case of 741).

If u still don't get it , try averaging the ADC data in ur code.
btw what ADC are u using? post ur ckt. diagram, if possible,to help u better.

[ Edited Wed Jun 25 2008, 07:58PM ]

* inspired to develop,developing to inspire *

firefly88

Thu Jun 26 2008, 06:02PM

Registered Member #8432

Joined: Mon Jun 16 2008, 02:17AM

Posts: 5
Thanked 0 times in 0 posts

Hi pdi33,
I use ADC AD7896 and the circuit is in my first post.

firefly88

Thu Jun 26 2008, 06:33PM

Registered Member #8432

Joined: Mon Jun 16 2008, 02:17AM

Posts: 5
Thanked 0 times in 0 posts

And when zero volt my display will show 0.1V.

pdi33

Thu Jun 26 2008, 08:16PM

Registered Member #1329

Joined: Mon Jun 04 2007, 09:28AM

Posts: 655
Thanked 144 times in 140 posts

hi frefly,
well, the ADC u r using is the fast type which uses successive approx. technique So there is bound to be some fluctuations in the reading.First check the points i mentioned previously and confirm that the supply voltage and the voltage to the input of the ADC is free from ripples and is steady.Then try to seperate the Analog and digital grounds of ur circuit and terminate them to the output capacitor negative terminal.This would eliminate any high frequency noise of ur digital circuit to interfere ur analog section thro a common ground return path.
All this will significantly reduce ur fluctuation part.
Lastly, u have to put an averaging algorithm to stabilise the reading.
To average the ADc value, just add n samples of the ADC reading and then divide the total by n. try initially by putting n=10.The ADC is really fast (8uS/sample) so updating ur data shouldn't be a problem.
Good Luck.

As for the zero reading part, have u checked that by shorting the vin and AGnd terminal?.
Another doubt is whether u are directly applying the input voltage to the ADC directly or through some op-amp signal conditioning circuit?

btw, how much does the ADC cost there?
