can any body send me programmer ckt 4 pic 18fxx.
plz help me its arrgent.

Thanku......

Hello,

http://www.olimex.com/dev/images/pic-pg1-sch.gif


--
Gurpreet Singh

IMBUENT TECHNOLOGIES PVT. LTD.

www.imbuent.com
www.embeddedcraft.org

i built these circuit my self and it is working circuits

pic.rar
positions.pdf

thanku sir , thanku very much,
now i m going to hardware of ds.

welcome praveena

شكراً جزيلاً MAJOKA

welcome Mudar

hello majoka sir,
i m confused with first one & PIC-and-EEPROM-Programmer pcb layout . i hv made pcb of (which was in pcb folder ).i made 2 times bcs first time yr pcb layout was not fit for 40 pin controller. at last....
(1)what is d purpose of second one.
(2) is the programmer got supply from pc? there is no external supply.
(3)what is d meaning of JDM & RCD programmer.
plz remove my confusion . i m little bit far to complete.
thanku very much!

hi yashshailesh
i make it and i am using that

i use female header that normally used with lcd
or u can use bases of round holes that r in goodquality
purpose was because every pic ic has its own pin configuration
so 40 pin has outer boundary header and small ic uses inner boundaries header
connections r also different for different rows

yes it sucks power from serial port of pc may not work with lap top that has less power port and usb to serial converter can not be used here

these r named of programmers
see this
http://feng3.cool.ne.jp/en/rcd.html

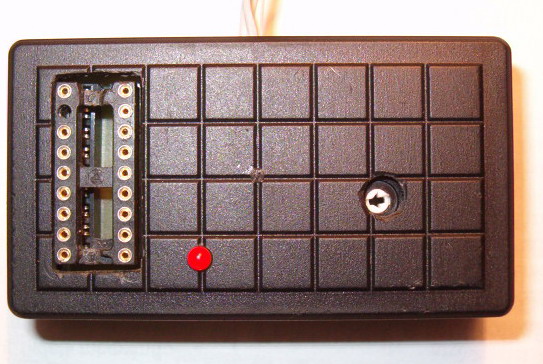

header or ic base should be as

sir thanks 4 repply ,
sir i hv made programmer and when i m burning through ic prog ther is no indication on programmer ckt (led is not glowing).
plz help sir,

one thing more , d icprog messaging every thing (erase device, sucessfully varified,etc) without connecting programmer board. i think prog not getting acknoledge from progm board. sir plz see my pcb layout.
pic_programmer_ckt.zip

hi yashshailesh
ru make it on pcb board or varoboard
even if not connected it should show verified successfully
ru set the com port no in setting
many software can be used with this check with other
picpgm programmer software
winpic prog
winpic etc
this hardware supported by these software and check hardware once more

hello majoka sir,
i hv used winpic800 it still not getting acoknowledge . a made hardware.
sir i have no camera otherwise i can send image of hardware. sir i hv checked hardware connection ,there is no error.
sir can u tell me process- from conecting it pc port to running program with either prog r win800.

hi..

yashshailesh see dis


http://www.microchip.com/en_US/promo/yes2010/index.html

thanks,but what is there 4 me sir.

if u buy u can program all pic series... its yr ending sale..

sir i hv made hrdware & want to make myself.plz i need yr kind help sir.

ya ....
wat is ur problem

, i made programmer as majoka send me doc.i hve used first pcb . i hv send dis in earlier post n then made hardware . sir problem is dat, when i m connecting programmer wd pc n starting ic prog there is no indication on progammer.

r u doing isp programming.. r in zif socket...

Hi Yash,

Majoka has posted 2-3 circuits of programmer. which one you've built? and what programmer software are you using for them?

also the olimex programmer circuit is simplest


you can make a six pin header and connect device to it. check olimex website for frontend software too.

hello sir sorry for late ,
i use pcb which is in pcb folder .i hv attached in earlier post. i made hardware . sir i hv used icprog1v06. when i m burning program there is no indication (acknowledgement). plz sir help me wt i m ding wrong. i m waiting yr response.

hi yashshailesh
i make it also on pcb and it work in first attempt
check ur connections once again
specially check transistors
all detail is given here
http://feng3.cool.ne.jp/en/pg5v2.html
in documentation 2 things are clearly mentions

other important points r also available on above link

hello majoka & ajay sir,
thanks for yr kind support , sir my programmer is working. hello ajay sir as u came in this thread, it started working .
wt u r doing help for we such type of student is undefinable sir .thanks to both of u & 2 all.

welcome yashshailesh
its our duty

hello sir ,
i want to ask,
(1) i hv 2 type of crystal 12MHz & 24MHz. i m using Pic 16f877a. which one is suitable .
(2). what will be capacitor combination with that.

hi yashshailesh
it depend on ur application u want to do
normal pic has maximum 20 MHz operating range so use 12 MHz
use 22pf cap

Thanku sir,
Sir ; is d above programmer ckt (Ajay sir) supports "PIC18F90J60 " with winpic800?.

hi yashshailesh
see its documentation
it support most of the ic that software has
u can use winpicpgm software also it is best where if fails there i use winpic800
it never fail to program
that ics listed in software that r supported by hardware
some ics are special that's pin are not compatible with hardware
so use an extra board to program that

Thank u for ur kind information

------------------------------------------------------

plc training in chennai
seo company chennai
plc training in chennai

welcome here praveepraba88
as its ur first post

hello sir,

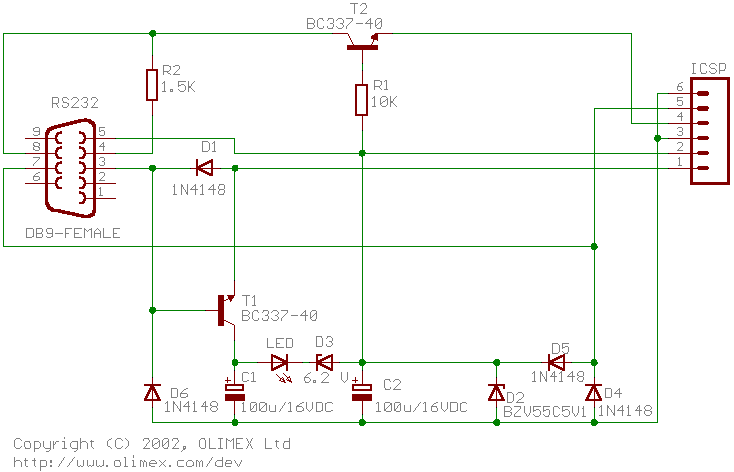

i want to make a devlopment board for pic 16f8xx for learning purpose. so that's why i wnt to program my pic on dev board(In ckt). so i want to made ICSP ckt. i hv build a icsp ckt given in below link:
http://www.olimex.com/dev/images/pic-pg1-sch.gif
i hv directaly use ICSP six pin .see attachment of my pcb ckt.
the problem is that
**when i m using winpic800 the led on programmer board blinking with each operation like "erase device","read", but when programm warning---programming failed,and device detected unknown.
**when i m using PICPgm there is also led blinkikg wd each operation but warning "NO PIC Connected"
when i m using IC_PROG there is no hdware detecte(there is no led blinking) of prog board
what is proble plz help , is there is problem in my prog ckt or ,which programmer work fine wd it.i hv conecte ICSP 6 pin like
6-pgm -36 of pic
5-clok -39
4-data -40
3-gnd -12 &31
2-vdd -11 &32
1-mclr/vpp -1, is there is need of supporting ckt in pic controller side.
i hv made a JMD programmer of majoka sir ( of which this icsp ckt is part ) working fine wd WINPIC800.i m busy wd this progmer ckt for 2-3 days.
i hv complited all port of my development board,i hv to add only ICSP in my board .
plz i need yr kind suport, plz

new_microsoft_office_word_document.zip
new_microsoft_office_word_document.zip

hi yashshailesh
once check ur connections again
as it is simple circuit and it should run
i make it also but with zif socket

hello sir,
thanks sir. Sir hv u seen my ckt. which programmer software hv u used.

hi yashshailesh
yes i see ur word file
do one thing
download pic 16f877 data sheet
and see its pin no on which data and clock has to go
match that with ur circuit u make
may be there is a swap between clock and data
i use PICPgm

i very interested with this project.this programmer can use for pic 16f?and other?and when i open mplab what should programmer should i use?like pickit2

hi Mamat

yes it is for pic 16 f and 18f
Pic Pgm,winpic800,win pic, IC_Prog can be used with this hardware
using with mplab u need pickit2 programmer it also support some other MPLAB ICD2 etc

use winPICPGM for programing.......!!!!!!!!

welcome alishaheen,
yas!, it is working with winPICPGM and also with winpic800.
