needginer

Mar 2 2008, 9:04 AM

I have a PIC16F877A which has an 8 bit ADC output. I want to connect it using the Max232 interface to a PC's serial port (COM1) using RS232. I am looking for the asm code on the PIC side as well as the VB or C code (or hyperterminal with steps) on the PC side. im doing a data acquisition system. may i have an sample ASM code about this, plz...

Ajay

Mar 2 2008, 10:43 AM

As you know about site rules.. no giving codes.. but we can correct your codes if you have made any mistake.. for that you have to write something yourself..

Our motive is to make you learn...

So for you.. download PIC16F87XA datasheet and read page starting from 116. I hope you will write something

once you care done with controller side.. we will work on VB ok?

needginer

Mar 2 2008, 11:15 AM

thank, do have any example or sample of pic16f877a asm code? asm o c will be easy for beginner?

Ajay

Mar 3 2008, 2:42 AM

Just take a look at the page i told you. It has got complete algorithm of how to configure PIC for UART. for beginner C is easy.. but do work on assembly also, coz its the basic.

needginer

Mar 3 2008, 5:33 AM

In my lecture is learning with C using pic16f84 but online tutorial mostly using assembly.
i had connected the pic with MAX232 and serial port.

PIC16F877A with the MAX232
pin26 RC7 -> pin10 TxD
pin25 RC6 -> pin9 RxD

MAX232 with the Serial Port
pin7 -> pin2
pin8 -> pin3

what is baud rate?

norms

Mar 4 2008, 2:22 AM

default is 9600 kbps

needginer

Mar 4 2008, 4:35 AM

any tutorial to teach how to write a program to interface with serial port max232?

Ajay

Mar 4 2008, 10:54 AM

have you written something?
what is the clock frequency? and what is the baud rate you want?

Ajay

Mar 4 2008, 11:05 AM

one more thing.. please correct your connections:

PIC16F877A with the MAX232
pin26 RC7 -> pin9 TxD
pin25 RC6 -> pin10 RxD

MAX232 with the Serial Port
pin7 -> pin2
pin8 -> pin3

Baud rate is rate at which data is transferred measured in bits per second.

needginer

Mar 4 2008, 11:26 AM

since my friend is using 9600 for the baud rate, so i decide to use 9600 too... the connection was incorrect? i only wrote something about ADC program...

Ajay

Mar 4 2008, 1:46 PM

maybe this help you..

http://ww1.microchip.com/downloads/en/DeviceDoc/31018a.pdf
please write something.. are u using C?

needginer

Mar 15 2008, 7:46 AM

hello everybody.. i had try some code in assembly. by the way im using MPLAB to try it. there is an error. when im trying to [build all] 'compile' the code, come out an error "DOS ERROR: FILE NOT FOUND". what is mean "Skipping link step. The project contains no linker script."? thank for concern

Ajay

Mar 15 2008, 8:04 AM

well the thing is.. MPLAB alone is just an editor so alone it wont work. You need an assembler or a compiler to be installed along with MPLAB and set the preferences in MPLAB to use it for assembling your codes.

Suggestion is download a MPASM from Microchip's website where you downloaded MPLAB.

needginer

Mar 15 2008, 8:28 AM

thank, i got the MPASM compiler but there are still the same error pop out, here is the code that i get from the tutorial. i am trying to understanding the code and make it to achieve my objective.

CODE:


;Tutorial 11
;Reading an analogue input, and displaying it on the LCD and RS232


        LIST    p=16F876, W=2, X=ON, R=DEC      ;tell assembler what chip we are using
        include "P16F876.inc"                   ;include the defaults for the chip
        ERRORLEVEL      0,      -302            ;suppress bank selection messages
        __CONFIG    0x393A                      ;sets the configuration settings (oscillator type etc.)


                cblock  0x20                    ;start of general purpose registers
                        count
                        count1
                        counta
                        countb
                        LoX
                        Bit_Cntr
                        Timer_H
                        Flags
                        Flags2
                        tmp1
                        tmp2
                        tmp3
                        NumL
                        NumH
                        TenK
                        Thou
                        Hund
                        Tens
                        Ones
                        templcd
                        templcd2
                        Point                   ;position of decimal point
                endc

LCD_PORT        Equ     PORTB
LCD_TRIS        Equ     TRISB
LCD_RS          Equ     0x04                    ;LCD handshake lines
LCD_RW          Equ     0x06
LCD_E           Equ     0x07

LEADZ           Equ     0x00                    ;set to display leading zeros
LCD             Equ     0x01                    ;set to print to LCD
RS232           Equ     0x02                    ;set to print to RS232

;start of program

                ORG     0x0000
                NOP
                BCF     PCLATH, 3
                BCF     PCLATH, 4
                GOTO    Initialise

                ORG     0x0004
                RETURN

                ORG     0x0005


Initialise      clrf    count
                clrf    PORTA
                clrf    PORTB
                clrf    PORTC
                clrf    Flags
                BANKSEL ADCON1                  ;disable A2D
                movlw   0x06
                movwf   ADCON1
                BANKSEL PORTA
                                                ;variables for decimal numbers display
                bsf     Flags, LEADZ            ;show leading zeros
                bsf     Flags, LCD              ;set to print to LCD
                bsf     Flags, RS232            ;and also to RS232
                movlw   0x02                    ;set decimal point position to two
                movwf   Point



SetPorts        bsf     STATUS,         RP0     ;select bank 1
                movlw   0x00                    ;make all LCD pins outputs
                movwf   LCD_TRIS
                bcf     STATUS,         RP0     ;select bank 0
                call    SER_INIT                ;initialise serial port
                call    LCD_Init                ;setup LCD module
                call    LCD_CurOff              ;turn cursor off
                call    Init_ADC                ;initialise analogue input

Main
                bcf     Flags,  RS232           ;turn off RS232
                call    LCD_Line1               ;set to first line
                call    String1                 ;display title string
                bsf     Flags,  RS232           ;turn RS232 back on

                call    LCD_Line2
                call    Read_ADC                ;read analogue input
                call    LCD_Decimal             ;and display (in decimal)

                bcf     Flags,  RS232           ;turn off RS232
                movlw   'V'
                call    LCD_Char                ;display a 'V' on LCD only

                bsf     Flags,  RS232           ;turn RS232 back on
                bcf     Flags,  LCD             ;and turn off LCD
                movlw   0x0A
                call    LCD_Char                ;display a LF
                movlw   0x0D
                call    LCD_Char                ;display a CR
                bsf     Flags,  LCD             ;turn LCD back on

                call    Delay100                ;delay to give 10 readings per second

                goto    Main                    ;loop for ever

Init_ADC
; Set ADCON0
                movlw   b'10000001'
                movwf   ADCON0
; Set ADCON1
                BANKSEL ADCON1
                movlw   b'10000101'
                movwf   ADCON1
                BANKSEL ADCON0
                return

Read_ADC
                bsf     ADCON0, GO_DONE         ;initiate conversion
                btfsc   ADCON0, GO_DONE
                goto    $-1                     ;wait for ADC to finish

                movf    ADRESH,W
                andlw   0x03
                movwf   NumH
                BANKSEL ADRESL
                movf    ADRESL,W
                BANKSEL ADRESH
                movwf   NumL                    ;return result in NumL and NumH
                return


;TABLES
HEX_Table       addwf   PCL       , f
                retlw   0x30
                retlw   0x31
                retlw   0x32
                retlw   0x33
                retlw   0x34
                retlw   0x35
                retlw   0x36
                retlw   0x37
                retlw   0x38
                retlw   0x39
                retlw   0x41
                retlw   0x42
                retlw   0x43
                retlw   0x44
                retlw   0x45
                retlw   0x46

Xtext           addwf   PCL, f
                retlw   'T'
                retlw   'u'
                retlw   't'
                retlw   'o'
                retlw   'r'
                retlw   'i'
                retlw   'a'
                retlw   'l'
                retlw   ' '
                retlw   '1'
                retlw   '1'
                retlw   '.'
                retlw   '4'
                retlw   0x00

;end of tables

String1         clrf    count                   ;set counter register to zero
Mess1           movf    count, w                ;put counter value in W
                call    Xtext                   ;get a character from the text table
                xorlw   0x00                    ;is it a zero?
                btfsc   STATUS, Z
                retlw   0x00                    ;return when finished
                call    LCD_Char
                incf    count, f
                goto    Mess1

;USART Serial routines

SER_INIT
                BSF     STATUS, RP0           ;select bank 1
                MOVLW   d'129'                ;9600 baud @ 20 Mhz Fosc +0.16 err
                MOVWF   SPBRG
                MOVLW   b'00100100'           ;brgh = 1
                MOVWF   TXSTA                 ;enable Async Transmission, set brgh
                BCF     STATUS, RP0           ;select bank 0
                MOVLW   b'10010000'
                MOVWF   RCSTA                 ;enable Async Reception
                RETURN

XMIT_RS232      btfss   PIR1,   TXIF          ;xmit buffer empty?
                GOTO    XMIT_RS232            ;no, wait
                MOVWF   TXREG                 ;now send
                RETURN

Rcv_RS232       BTFSS   PIR1,   RCIF          ; check for received data
                GOTO    Rcv_RS232
                MOVF    RCREG,  W
                RETURN

;End of serial routines

;LCD routines

;Initialise LCD
LCD_Init        call    LCD_Busy                ;wait for LCD to settle

                movlw   0x20                    ;Set 4 bit mode
                call    LCD_Cmd

                movlw   0x28                    ;Set display shift
                call    LCD_Cmd

                movlw   0x06                    ;Set display character mode
                call    LCD_Cmd

                movlw   0x0c                    ;Set display on/off and cursor command
                call    LCD_Cmd                 ;Set cursor off

                call    LCD_Clr                 ;clear display

                retlw   0x00

; command set routine
LCD_Cmd         movwf   templcd
                swapf   templcd,        w       ;send upper nibble
                andlw   0x0f                    ;clear upper 4 bits of W
                movwf   LCD_PORT
                bcf     LCD_PORT, LCD_RS        ;RS line to 1
                call    Pulse_e                 ;Pulse the E line high

                movf    templcd,        w       ;send lower nibble
                andlw   0x0f                    ;clear upper 4 bits of W
                movwf   LCD_PORT
                bcf     LCD_PORT, LCD_RS        ;RS line to 1
                call    Pulse_e                 ;Pulse the E line high
                call    LCD_Busy
                retlw   0x00

LCD_CharD       addlw   0x30                    ;add 0x30 to convert to ASCII
LCD_Char        btfsc   Flags, RS232
                call    XMIT_RS232              ;do RS232 if flag set
                btfss   Flags, LCD
                return                          ;return if LCD not set
                movwf   templcd
                swapf   templcd,        w       ;send upper nibble
                andlw   0x0f                    ;clear upper 4 bits of W
                movwf   LCD_PORT
                bsf     LCD_PORT, LCD_RS        ;RS line to 1
                call    Pulse_e                 ;Pulse the E line high

                movf    templcd,        w       ;send lower nibble
                andlw   0x0f                    ;clear upper 4 bits of W
                movwf   LCD_PORT
                bsf     LCD_PORT, LCD_RS        ;RS line to 1
                call    Pulse_e                 ;Pulse the E line high
                call    LCD_Busy
                retlw   0x00

LCD_Line1       movlw   0x80                    ;move to 1st row, first column
                call    LCD_Cmd
                retlw   0x00

LCD_Line2       movlw   0xc0                    ;move to 2nd row, first column
                call    LCD_Cmd
                retlw   0x00

LCD_Line1W      addlw   0x80                    ;move to 1st row, column W
                call    LCD_Cmd
                retlw   0x00

LCD_Line2W      addlw   0xc0                    ;move to 2nd row, column W
                call    LCD_Cmd
                retlw   0x00

LCD_CurOn       movlw   0x0d                    ;Set display on/off and cursor command
                call    LCD_Cmd
                retlw   0x00

LCD_CurOff      movlw   0x0c                    ;Set display on/off and cursor command
                call    LCD_Cmd
                retlw   0x00

LCD_Clr         movlw   0x01                    ;Clear display
                call    LCD_Cmd
                retlw   0x00

LCD_HEX         movwf   tmp1
                swapf   tmp1,   w
                andlw   0x0f
                call    HEX_Table
                call    LCD_Char
                movf    tmp1, w
                andlw   0x0f
                call    HEX_Table
                call    LCD_Char
                retlw   0x00

Pulse_e         bsf     LCD_PORT, LCD_E
                nop
                bcf     LCD_PORT, LCD_E
                retlw   0x00

LCD_Busy
                bsf     STATUS, RP0             ;set bank 1
                movlw   0x0f                    ;set Port for input
                movwf   LCD_TRIS
                bcf     STATUS, RP0             ;set bank 0
                bcf     LCD_PORT, LCD_RS        ;set LCD for command mode
                bsf     LCD_PORT, LCD_RW        ;setup to read busy flag
                bsf     LCD_PORT, LCD_E
                swapf   LCD_PORT, w             ;read upper nibble (busy flag)
                bcf     LCD_PORT, LCD_E
                movwf   templcd2
                bsf     LCD_PORT, LCD_E         ;dummy read of lower nibble
                bcf     LCD_PORT, LCD_E
                btfsc   templcd2, 7             ;check busy flag, high = busy
                goto    LCD_Busy                ;if busy check again
                bcf     LCD_PORT, LCD_RW
                bsf     STATUS, RP0             ;set bank 1
                movlw   0x00                    ;set Port for output
                movwf   LCD_TRIS
                bcf     STATUS, RP0             ;set bank 0
                return

LCD_Decimal
                call    Convert
                btfsc   Flags, LEADZ
                goto    LCD_TENK
                movf    TenK, w
                btfss   STATUS, Z
                goto    LCD_TENK
                movf    Thou, w
                btfss   STATUS, Z
                goto    LCD_THOU
                movf    Hund, w
                btfss   STATUS, Z
                goto    LCD_HUND
                movf    Tens, w
                btfss   STATUS, Z
                goto    LCD_TENS
                goto    LCD_ONES
LCD_TENK
                movlw   0x05                    ;test if decimal point 5
                subwf   Point, w
                btfss   STATUS    , Z
                goto    NO_DP5
                movlw   '.'
                call    LCD_Char                ;display decimal point
NO_DP5          movf    TenK, w
                call    LCD_CharD
                movlw   0x04                    ;test if decimal point 4
                subwf   Point, w
                btfss   STATUS    , Z
                goto    LCD_THOU
                movlw   '.'
                call    LCD_Char                ;display decimal point
LCD_THOU
                movf    Thou, w
                call    LCD_CharD
                movlw   0x03                    ;test if decimal point 3
                subwf   Point, w
                btfss   STATUS    , Z
                goto    LCD_HUND
                movlw   '.'
                call    LCD_Char                ;display decimal point
LCD_HUND
                movf    Hund, w
                call    LCD_CharD
                movlw   0x02                    ;test if decimal point 2
                subwf   Point, w
                btfss   STATUS    , Z
                goto    LCD_TENS
                movlw   '.'
                call    LCD_Char                ;display decimal point
LCD_TENS
                movf    Tens, w
                call    LCD_CharD
                movlw   0x01                    ;test if decimal point 1
                subwf   Point, w
                btfss   STATUS    , Z
                goto    LCD_ONES
                movlw   '.'
                call    LCD_Char                ;display decimal point
LCD_ONES
                movf     Ones, w
                call     LCD_CharD
                return


;end of LCD routines


;Delay routines

Delay255        movlw   0xff            ;delay 255 mS
                goto    d0
Delay100        movlw   d'100'          ;delay 100mS
                goto    d0
Delay50         movlw   d'50'           ;delay 50mS
                goto    d0
Delay20         movlw   d'20'           ;delay 20mS
                goto    d0
Delay5          movlw   0x05            ;delay 5.000 ms (20 MHz clock)
d0              movwf   count1
d1              movlw   0xE7
                movwf   counta
                movlw   0x04
                movwf   countb
Delay_0         decfsz  counta, f
                goto    $+2
                decfsz  countb, f
                goto    Delay_0

                decfsz  count1  ,f
                goto    d1
                retlw   0x00

;end of Delay routines

;This routine downloaded from http://www.piclist.com
Convert:                        ; Takes number in NumH:NumL
                                ; Returns decimal in
                                ; TenK:Thou:Hund:Tens:Ones
        swapf   NumH, w
        iorlw   B'11110000'
        movwf   Thou
        addwf   Thou,f
        addlw   0XE2
        movwf   Hund
        addlw   0X32
        movwf   Ones

        movf    NumH,w
        andlw   0X0F
        addwf   Hund,f
        addwf   Hund,f
        addwf   Ones,f
        addlw   0XE9
        movwf   Tens
        addwf   Tens,f
        addwf   Tens,f

        swapf   NumL,w
        andlw   0X0F
        addwf   Tens,f
        addwf   Ones,f

        rlf     Tens,f
        rlf     Ones,f
        comf    Ones,f
        rlf     Ones,f

        movf    NumL,w
        andlw   0X0F
        addwf   Ones,f
        rlf     Thou,f

        movlw   0X07
        movwf   TenK

                    ; At this point, the original number is
                    ; equal to
                    ; TenK*10000+Thou*1000+Hund*100+Tens*10+Ones
                    ; if those entities are regarded as two's
                    ; complement binary.  To be precise, all of
                    ; them are negative except TenK.  Now the number
                    ; needs to be normalized, but this can all be
                    ; done with simple byte arithmetic.

        movlw   0X0A                             ; Ten
Lb1:
        addwf   Ones,f
        decf    Tens,f
        btfss   3,0
        goto   Lb1
Lb2:
        addwf   Tens,f
        decf    Hund,f
        btfss   3,0
        goto   Lb2
Lb3:
        addwf   Hund,f
        decf    Thou,f
        btfss   3,0
        goto   Lb3
Lb4:
        addwf   Thou,f
        decf    TenK,f
        btfss   3,0
        goto   Lb4

        retlw   0x00


                end


shyam

Mar 15 2008, 8:31 AM

you dont need to download MPASM it comes integrated with MPLAB...

i beleive u have not included the 16fxx.lkr kinda linker file in your project so is the error..

needginer

Mar 15 2008, 8:33 AM

thank, where the 16fxx.lkr should be?

Ajay

Mar 15 2008, 8:38 AM

you said you are trying serial port.. so why this LCD coming?

shyam

Mar 15 2008, 8:51 AM

the linker file should be automatically fetched sill check if u made the project right atke a look at how it shud be done

how_to_use_mplab_ver6.rar

needginer

Mar 15 2008, 8:53 AM

thank :-) this the tutorial is about below. Is it ok, if i want to remove all the LCD output? before i remove it, i hope this code could run and do it step by step.

This time we add an extra board, the RS232 Board. The program is essentially Tutorial 11.3, but this time we add a serial output routine to send the data via RS232 to a PC. For the RS232 output we don't send the 'V' at the end, but we do send CR/LF in order to display each reading on a separate line. I've implemented this by modifying the LCD_Char routine and adding a couple of Flags - LCD and RS232 - by setting these flags ON or OFF we can print to either the LCD, the RS232 output, both, or neither.

Ajay

Mar 15 2008, 9:06 AM

if you have LCD on board then try it.. and test it.
Otherwise you can just take out the initialization, sending and receiving part of serial from the tutorial.

needginer

Mar 16 2008, 2:01 AM

but i cant compile it, and cant test with the LCD. with the linker problem :-) the linker problem is a problem in the code o the program?

Ajay

Mar 17 2008, 3:53 PM

its software's problem.. something might be missing.. please check what shyam said. the linker file..

needginer

Mar 17 2008, 4:32 PM

thank. i can compile it already, because i missed some step when compile it before.

Ajay

Mar 17 2008, 5:10 PM

so things working without LCD part?

Matt Lim

Jul 29 2008, 4:45 AM

Is this topic closed? if not i would like to add my doubts on my project im working on. Im doing a microcontroller based bidirectional visitor counter. Im using AT89C51, three 7-segments LEDS, one 74LS76 J-K flip flop, one LM324 quad op amp, IR transmitting LED, L14F1 npn phototransistor as my sensors and 2N3904 npn transistor. I would like to change the microcontroller to PIC16F877A and the 7 segments to LCDs. After that i will interface it with the PC with a serial port using RS232. I need some help on a few issues.
1) What pins should be reconnected when i change to PIC16F877A?
2) In AT89C52 i used 2 interrupts to detect the interruption of the sensors but for PIC16F877A i only have one interrupt to work with, how should i solve this?
3) what are the connections for the pins of the LCD?

Matt Lim

Jul 29 2008, 4:52 AM

Additional info:
AT89C51 P0,P1,P2 is connected to the 7segments. Pin 40,Pin31 to 5V. P3 to 74LS76 pin 2. INT0 to 74LS76 pin 15. INT1 to 74LS76 pin 11. P3.1 to 74LS76 pin7. Pin 18 and Pin 19 connected to 12Mhz crystal. Pin20 to GND. For PIC16F877A what should be the changes?

Ajay

Jul 29 2008, 11:25 AM

for sure PIC will not be pin compatible with 8051, try using polling for IR instead of interrupt or use three pins both anded and connected to interrupt, so whenever interrupt occurs you check which line caused the interrupt.

lcd connections will remain same. do check for the coding part.

Matt Lim

Jul 30 2008, 1:40 AM

The code for the AT89C51 is this

CODE:

#include <AT89C51.h>int i=o,j,k,l,m, a[]={63,6,91,79,102,109,125,7,127,,111};
void enter (void) interrupt 0
{
i++;
if(i>999) i=999;
P3_1=1;
}
void exit (void) interrupt 2
{
i--;
if (i<0) i=0;
P3_0=0;
for (m=0;m<=1000; m++);
P3_0=1;
}
void main ()
{
IE=133;
TCON=5;
P3_0=1;
P3_1=1;
i=0;
while(1)
{
j=i%10;
k=i/10;
l=i/100;
k=k-l*10;
P2=a[j];
P0=a[k];
P1=a[l];
}
}

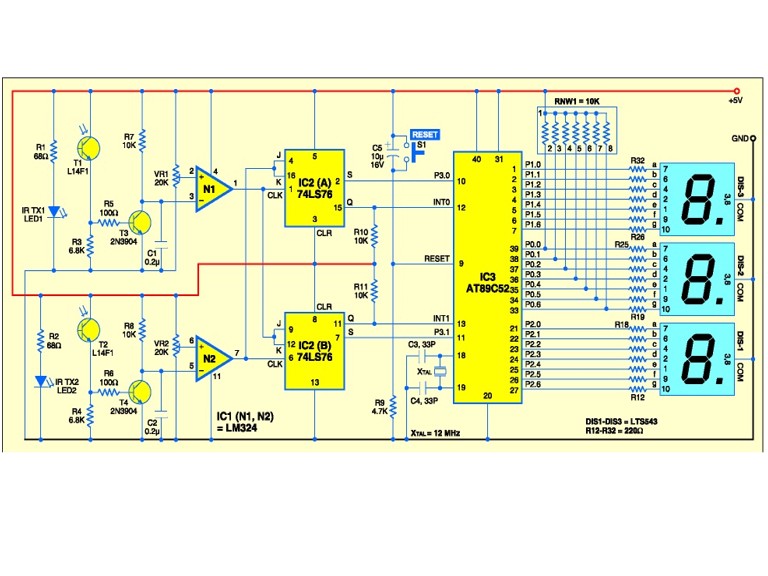

the schematic circuit is shown. what should i do if i wanna change it to PIC16F877A and LCD?

Ajay

Jul 30 2008, 11:32 AM

Its really a simple project...

Is it something like this.. you have two doors, enter and exit and your count increment/decrement when someone cross that IR signal.

its easy to port this on PIC. you while 1 will be something like this

CODE:

while(1)
{
j=i%10;
k=i/10;
l=i/100;
k=k-l*10;
LCD_putchar(j+0x30);
LCD_putchar(k+0x30);
LCD_putchar(l+0x30);
LCD_putcmd(0x80); //back to first character
}


regarding IR reception..
connect your IR i/p to PIC like this..
____
----| \_____INT Pin of PIC
----|____/

^its an AND gate

I/ps of AND gate will be your first IR, second IR and o/p is connected to INTR pin of PIC. so whatever IR goes low you will get interrupt on your MCU, in ISR read the status of both pins separately (IR inputs connected to any two GPIOs of PIC). this way you can do same thing as you done in above code, all you need to add is extra code for LCD instead of 7-segment.

Matt Lim

Jul 31 2008, 6:54 AM

Are my connections correct for PIC16F877A?
Pin 11 and Pin 32 to 5V
Pin 26 to Pin 2 of 74LS76
Pin 1 to Reset
Pin 25 to Pin 11 of 74LS76
Pin 13 to 12Mhz crystal
Pin 14 to 12 Mhz crystal
Pin 31 to GND
and i use RB0 to RB7 and RD0 to RD7 to my LCD
IR input connect to AND and Output to interrupt pin 33 (RB0)
any other pins that need to be grounded or connect to 5v?

I wanna interface it to my pc with visual basic program. I need to add a RS232 to my circuit right? where should i connect it to? im using Microchip PIC KIT, MPLAB and ICD2

I connect the LCD based on the image given can?

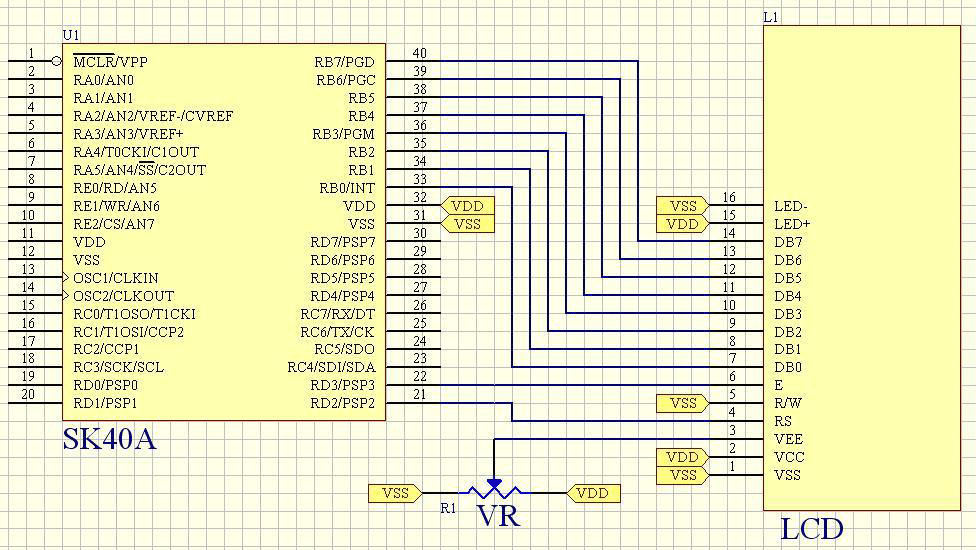

Ajay

Jul 31 2008, 11:14 AM

you cant connect Interrupt pin with LCD as it is used for interrupts only from IR sources. So connect LCD control pins to port A rather or any pin you like.

Matt Lim

Aug 1 2008, 3:50 AM

I wanna interface it to my pc with visual basic program. I need to add a RS232 to my circuit right? where should i connect it to? im using Microchip PIC KIT, MPLAB and ICD2

Ajay

Aug 1 2008, 11:46 AM

yes add RS232 circuit (MAX232) in your circuit.

ExperimenterUK

Aug 5 2008, 8:57 PM

Hi Matt

It seems to me you have too many components, something to avoid
where ever possible.

The 2N3904s and the LM324 are both acting as amplifiers and you don't need both.
You certainly don't need the 7476. Whatever it does should be done in software.
Removing these items will clean up your circuit and make it more reliable.

As for sharing interrupts, why bother ?
The PIC has nothing else to do so why not just connect the detectors to
two pins and continuously poll them as Ajay suggested.

>I need to add a RS232 to my circuit right? where should i connect it to?

Connect pins 25 and 26 to a MAX232 (or similar) level converter chip and connect that
to the tx and rx pins of your PC's D9 connector.

I'll leave it to you to sort out which pins,
but try this handy tutorial.
http://www.8051projects.net/serial-communication/introduction.php

Plus... you could use a smaller PIC as you don't need so many pins for the display.
A minor point, but it's better to use a name like "visitorCount" than "I" as a variable name.

Matt Lim

Aug 10 2008, 5:50 AM

Hi ExperimenterUK,

Really appreciate your advice as it really had help me alot.thanks so much. i will try to make some adjustments to my circuit and program first. later if i have any problems i will ask for help.

Matt Lim

Aug 18 2008, 12:11 PM

the polling of the IR detectors how is it done in hardware? do i just connect them by wires? or do i buy an AND gate component?

Matt Lim

Aug 18 2008, 12:42 PM

[blank]

Ajay

Aug 18 2008, 3:22 PM

matt you do not need opamps inbetween controller and photo-transistor, rather you can directly connect IR Receiver (photo-transistor) to controller pin or connect 2N3904 o/p to controller, which also makes polling simpler..

polling can be done the following way..
lets say normally your sensor o/p is high and when someone crosses it, o/p becomes low..

CODE:

while(sensor1 && sensor2); // wait for any of sensor 1 or 2 to be crossed
if(sensor1 == 0){
     //someone crossed sensor1
}
if(sensor2 == 0){
     //someone crossed sensor2
}


this is how polling is done.

Matt Lim

Aug 19 2008, 9:16 AM

is it i should remove the LM324? what about the flip flop? do i keep it?

sashijoseph

Aug 19 2008, 3:19 PM

Just connect the collectors of the 2 transistors to 2 PIC gpio pins and remove all the rest of the components in between.
Without the comparator you would probably need to tinker a bit with the 3904's biasing to make it trigger the PIC appropriately.

Matt Lim

Aug 21 2008, 7:24 AM

Ajay, means i have to connect the collector pin of 2N3904 to pin 33 of PIC16 right? so i would remove VR1, LM324, and 74LS76?
cause since polling is done in software means the flip flops wont be of any use correct? the rest of the circuit is ok?

sashijoseph

Aug 21 2008, 2:44 PM

Yup that's right.

Matt Lim

Aug 26 2008, 9:59 AM

...

Ajay

Aug 26 2008, 10:33 AM

I am not sure how you are able to compile your code coz i found these errors by just seeing the code.. like

int i=o <<-- zero or o

a[]={63,6,91,79,102,109,125,7,127,,111};
before 111, you have put two commas. Please fix them and try running code again.

Matt Lim

Aug 27 2008, 3:32 AM

Ajay

Aug 28 2008, 4:14 AM

can you please explain what are you trying to do in this program, so will be easier to help out.

Matt Lim

Aug 28 2008, 4:23 PM

by configuring the 8051 as a negative edge triggered interrupt sensor i set IT1=1 and IT0=1 correct? then TCON=5 and IE=133. how do i write when the 8051 received interrupt from the sensor, it will display 1 on each increment of the interruption?

Matt Lim

Sep 2 2008, 3:37 AM

is it correct?

Ajay

Sep 2 2008, 5:23 PM

making ITx bit 1 will make your interrupts edge triggered, so whenever your signal goes high to low, you will get an interrupt.

to increment 1 at every interrupt you have to write an ISR (interrupt service routine). example

CODE:

void INT0ISR() interrupt 0{
     //your increment code here for INT0
}

void INT1ISR() interrupt 2{
     //code for INT1
}


Matt Lim

Sep 3 2008, 12:34 AM

void INT0ISR() interrupt 0{
i++;
if (i>999) i=999;
P3_1=0;

for (m=0;m<=1000;m++);
P3_1=1;
}

void INT1ISR() interrupt 2{
i--;
if(i<0) i = 0;
P3_0=0;

for (m=0; m<=1000;m++);
P3_1=1;
}

The negative going pulse is applied when the persons interrupts the IR beam from TX2. It will trigger the INT0. The value of the counter increments by '1' when interrupt service routine for INT0 is executed right?

Ajay

Sep 3 2008, 5:44 AM

matt, whenever you have a problem, create your own thread, coz now you are posting in PIC microcontroller section where as your problem is related to 8051. Please take care of these things.

This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
