So,whats inside a Crystal ?


Moderators: Ajay Bhargav, Arun Kumar V, pdi33, Shailesh NAYAK, ۞ TPS ۞, shyam, sashijoseph, ExperimenterUK, DavesGarage, majoka

Author

Post

Arun Kumar V

Wed Jun 25 2008, 10:00AM

Registered Member #426

Joined: Mon Jan 29 2007, 02:50AM
Location (Home Town): Hyderabad-India
Posts: 761

Hello guys,

all of us know whats inside a Crystal - Quartz !

i needed a 11.0592 MHZ Xtal badly for a project, when i checked my table i found only one and that too with a broken lead. since i didn't have time to rush to the electro stores i started to cut open the crystal with a sharp chisel, my aim was to solder a wire from inside.

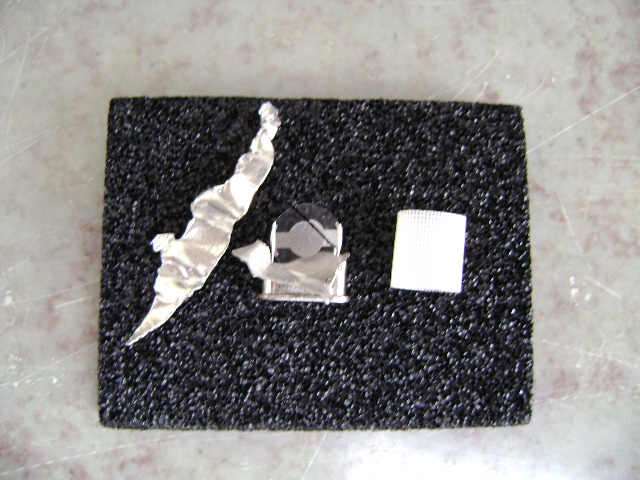

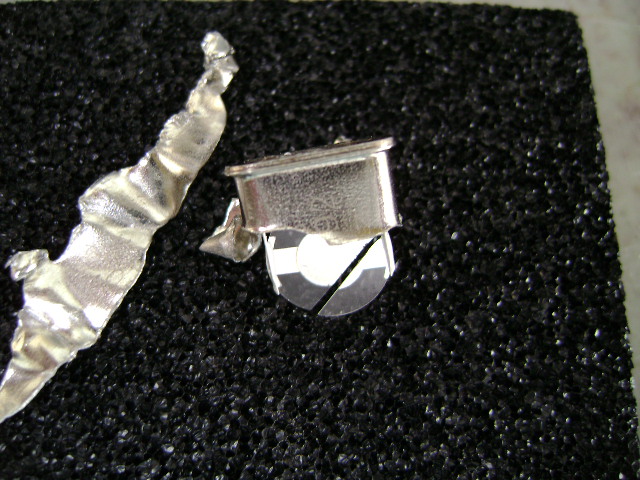

eventually i messed up and broke the fine disc like quartz crystal, the fine disc is covered in a fabric sleeve may be to protect it from temperature effects. here are the pics of the operation that went wrong !

Arun
